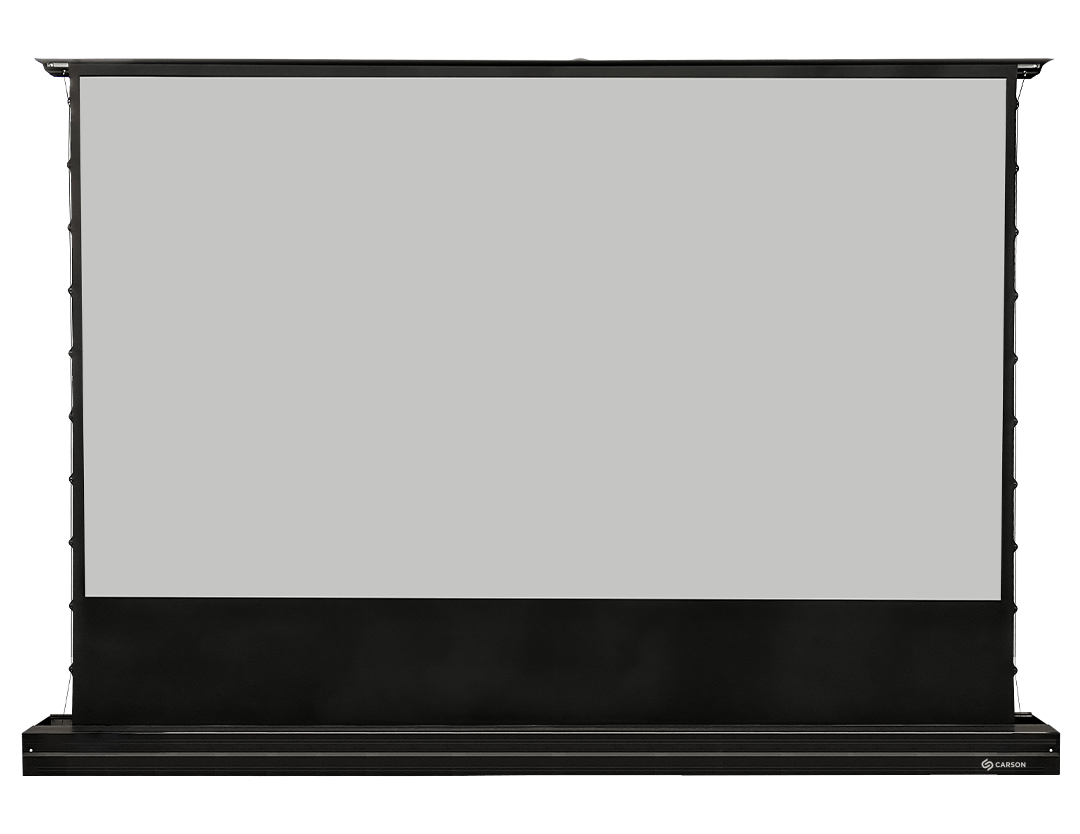

The Phoenix

The ultimate floor rising home cinema

The Phoenix is a floor-rising electric projection screen with ambient light rejecting technology that is the ideal non-invasive solution for environments where wall or ceiling installations are impractical.

Plug, Play & Enjoy

Breeze through setup, no hardwired installation required.

Rises and lowers using the greatest motorized pop-up system

By using “scissor-backed” industry grade cross spring risers allows screen to rises smoothly in a short period of time.

Tab-tensioned format ensure a taut, flat, and ripple-free projection surface.

No drilling required

Just place the screen on a flat surface, sit back and enjoy.

Materials

Daylight Material II ALR 8K

Carson’s Daylight II HDR 8K material incorporates next generation Z-axis lattice coating technology to achieve ultra fine-grained 8K+ resolving ability while absorbing 85% of ambient light from directions other than the projector so that you can enjoy full colour images even when the

the curtains are open/lights are on. The material has 0.8 gain and uniformly transmits vivid colour in a wide 160 degree arc for the entire audience to enjoy.

Made from a dark nano particle mix formed on top of a bulk polymer sublayer that prevents sunlight penetration from the rear, Daylight II fully supports HDR10+, Dolby Vision and Rec. 2100, making it an excellent future proof investment for your current and future projectors.

Carson’s unique chemically engineering ensures this stable material is resistant to creasing, UV, moisture, dust, fire, discolouration and ageing so your screen will continue to perform day-in, day-out for decades to come.

Measurements

FormatSpecViewing areaSize of caseTop borderLeft/ Right borderBottom borderOpen height (Z)
16:970″1150W x 872H1820L x 133H x 123D30305001537
80″1771W x 996H2041L x 133H x 123D30305001662
90″1992W x 1121H2262L x 133H x 123D30305001662
100″2213W x 1245H2484L x 133H x 123D30305001786
110″2435W X 1369H2705L x 133H x 123D30305001910
120″2656W X 1494H2926L x 133H x 123D50505002034

The recorded measurements are for general reference only. Please contact Carson Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or ignored at the integrator’s discretion. Carson Screens will not be held responsible or be otherwise liable for faulty installations.

Features

High-quality screen in an economical frame construction

Compatible with all projectors including UST

4K/8K Ultra HD, HDR and Active 3D compatible

Up to 7 times higher contrast than conventional front screens

Easy to setup

Projection in brightly lit environments

Remote controller with 12V trigger, allow screen stop at any desired level

ISF-certified screen material

Tab-tensioned design ensures a taut and flat ripple-free projection surface

Additional information

Case colour

Black

Aspect ratio

16:9

Aspect Ratio (Masked)

HDTV 16:9

Projector screen size

70" – 120"

Material

Daylight Material II ALR 8K
