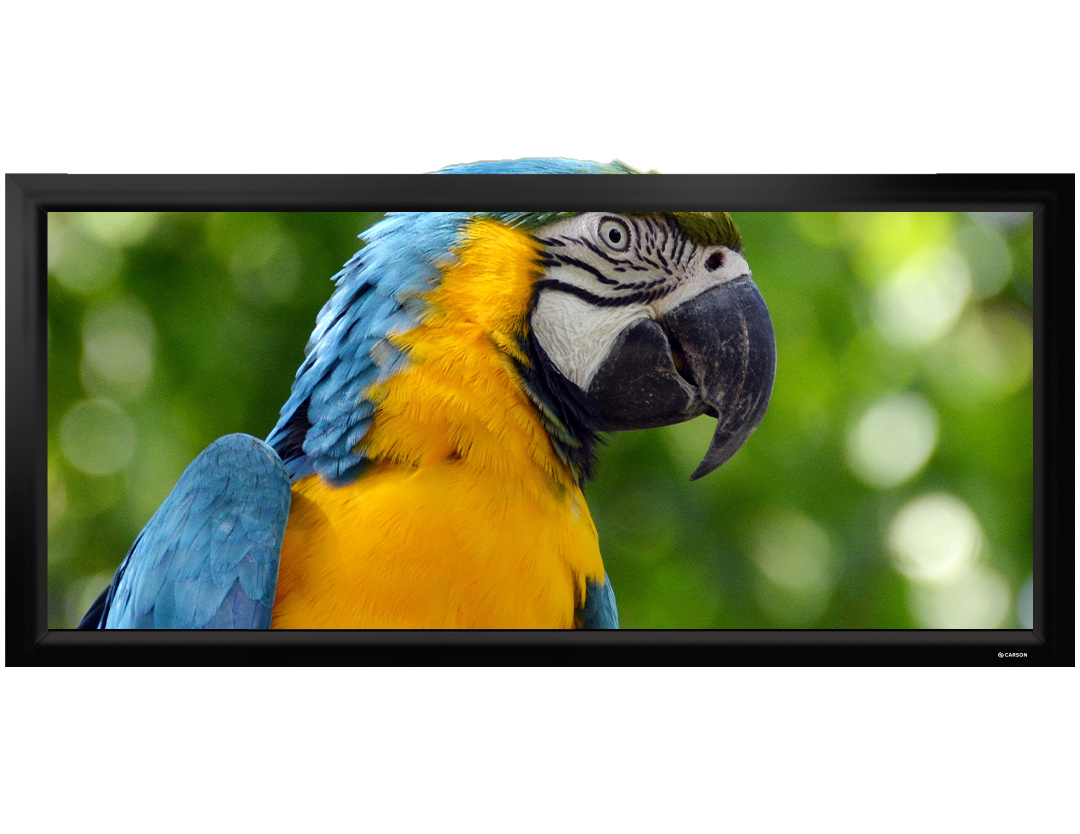

Scope

Scope has a sleek, modern appearance due to a 45-degree angle cut frame which provides a perfectly flat viewing surface for projection applications.

The Scope consisting of a 60mm width frame. Due to the larger frame width, It controls tension more accurately while creating excellent presence. The material surface mounts to the back of an aluminum velour frame that provides the deepest black masking.

CARSON Scope has a sleek, modern appearance due to a 45-degree angle cut frame which provides a perfectly flat viewing surface for projection applications.

The Scope consisting of a 60mm width frame. Due to the larger frame width, It controls tension more accurately while creating excellent presence. The material surface mounts to the back of an aluminum velour frame that provides the deepest black masking.

The Scope also comes standard with velour trim that aesthetically enhances the appearance of the installation, while absorbing light that surrounds the viewing area.

Materials

Alpha Matt II HDR 8K

Carson’s Alpha Matt II HDR 8K material incorporates next generation Z-axis composite embossing technology to achieve ultra fine-grained 8K+ resolving ability. The material has 1.0 pure unity gain to support the latest infinite contrast ratio projectors and uniformly transmits vivid colour in a wide 160 degree arc for the entire audience to enjoy.

Made from a special synthetic polymer mix formed on top of a black bulk sublayer that prevents sunlight penetration from the rear, Alpha Matt II fully supports HDR10+, Dolby Vision and Rec. 2100, making it an excellent future proof investment for your current and future projectors.

Carson’s unique chemically engineering ensures this highly-elastic and foldable material is resistant to creasing, UV, moisture, dust, fire, discolouration and ageing so your screen will continue to perform day-in, day-out for decades to come.

Measurements

FormatSpecViewing areaInstallation area
2.35:1100″2337 X 9952457 X 1115
110″2571 X 10942691 X 1214
120″2805 X 11932925 X 1313
130″3038 X 12933158 X 1413
140″3272 X 13923392 X 1512
150″3506 X 14923706 X 1612
160″3740 X 15913880 X 1731
170″3973 X 16914113 X 1831
180″4207 X 17904347 X 1930
190″4441 X 18904581 X 2030
200″4674 X 19894814 X 2129

The recorded measurements are for general reference only. Please contact Carson Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or ignored at the integrator’s discretion. Carson Screens will not be held responsible or be otherwise liable for faulty installations.

Features

High-quality screen in an economical frame construction

Compatible with all projectors including UST

4K compatible

Easy to assemble and install

Custom size options up to 200 inches

Award-winning screen technology

Compact and robust transport crate for easy shipping

ISF-certified screen material

Additional information

Case colour

Black

Aspect ratio

2.35:1

Projector screen size

80" – 120", Custom size options up to 200 inches

Bracket system

Hidden Bracket System

Material dual layers

Yes

Velour cover

Yes
