Cinema When You Want It. Invisible When You Don't.
The Carson Cellio 2.35:1 4K/8K In-Ceiling Powered Home Theatre Screen keeps visual components out of sight until it's time to watch. With one touch of your remote, the screen descends from its concealed ceiling housing, delivering a widescreen home theatre experience without a permanently visible screen.
Designed to Disappear.
A specially designed casing integrates into the ceiling space after installation, keeping the screen hidden when retracted. The result is a clean, uncluttered interior that transforms into a cinema at the touch of a button.
One Touch. Big-Screen Viewing.
Enjoy convenient remote-controlled screen deployment and quiet operation. The Cellio In-Ceiling is designed to combine a discreet installation with an ultra-flat projection surface and increased contrast.
Made for More Than Movie Night.
Ideal for home theatres, educational spaces, churches and boardroom presentations where a large projection screen is needed without permanently occupying the room.
Measurements.

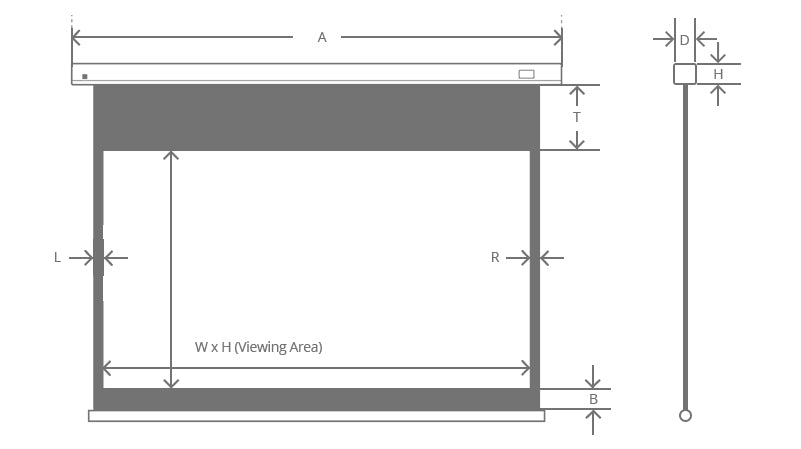

2.35:1 widescreen dimensions for the Carson Cellio In-Ceiling Powered Screen. All measurements are in millimetres.
| Format | Size | Viewing Area (W × H) | Top Border (T) | Side Borders (L/R) | Bottom Border (B) | Casing (A × D × H) | Cut-Out (A × D) |
|---|---|---|---|---|---|---|---|
| 2.35:1 | 92″ | 2150 × 915 | 850 | 50 | 80 | 2589 × 160 × 110 | 2569 × 140 |
| 2.35:1 | 100″ | 2337 × 995 | 570 | 50 | 80 | 2776 × 160 × 110 | 2756 × 140 |
| 2.35:1 | 110″ | 2571 × 1094 | 470 | 50 | 80 | 3010 × 160 × 110 | 2990 × 140 |
| 2.35:1 | 120″ | 2805 × 1193 | 630 | 50 | 80 | 3244 × 160 × 110 | 3224 × 140 |
| 2.35:1 | 130″ | 3038 × 1293 | 580 | 50 | 80 | 3477 × 160 × 110 | 3457 × 140 |
| 2.35:1 | 140″ | 3272 × 1392 | 480 | 50 | 80 | 3711 × 160 × 110 | 3691 × 140 |
| 2.35:1 | 150″ | 3506 × 1492 | 380 | 50 | 80 | 3960 × 160 × 110 | 3940 × 140 |
The recorded measurements are for general reference only. Please contact Carson Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or ignored at the integrator's discretion. Carson Screens will not be held responsible or be otherwise liable for faulty installations.
