Description
Plug, Play & Enjoy
No hardwired installation required
Breeze through setup with a convenient plug-and-play design.
Smooth Rising. Precise Tension.
Scissor-backed lifting system
Industry-grade cross-spring risers allow the screen to rise smoothly in a short period of time.
The tab-tensioned format helps maintain a taut, flat and ripple-free projection surface.
No Drilling Required
Place it. Power it. Enjoy.
Simply place the screen on a flat surface, sit back and enjoy.
Optimised for Ultra Short Throw Projectors
Designed for ultra-short-throw projection, the screen uses Fresnel lens principles to direct projected light towards the audience while absorbing ambient light, helping improve perceived brightness and contrast.

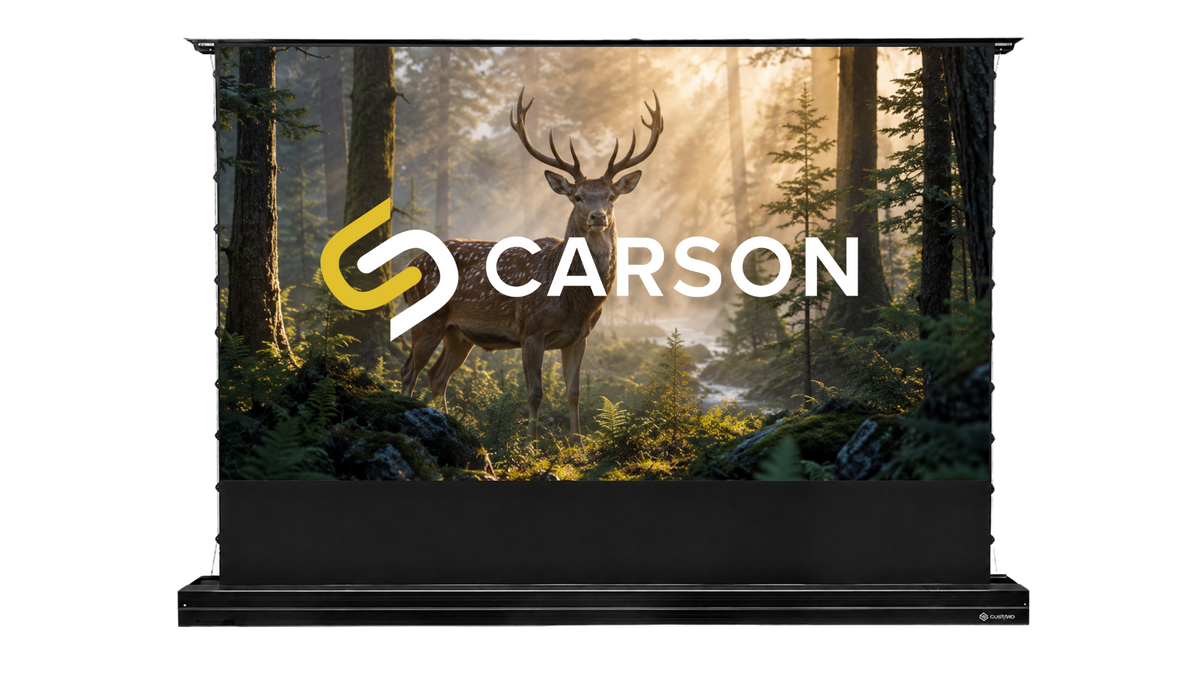

BrightStar Ultra UST 8K
Optical nano-lens technology
BrightStar Ultra UST 8K uses Z-axis optical nano-lens technology for fine 8K+ image detail. The supplied specifications state 93% ambient light absorption from above and the sides, 0.8 gain and a 160° viewing angle.
Its lens structures redirect light from LED and laser UST projectors towards viewers. A black backing helps prevent light penetration from behind the screen.
The supplied material description lists HDR10+, Dolby Vision and Rec. 2100 support, as well as resistance to creasing, UV, moisture, dust, discolouration and ageing.
Measurements
| Format | Size | Viewing Area (W × H) | Case (L × H × D) | Top Border | Side Borders | Bottom Border | Open Height (Z) |
|---|---|---|---|---|---|---|---|
| 16:9 | 90″ | 1992 × 1121 | 2262 × 133 × 123 | 30 | 30 | 320 | 1458 |
| 16:9 | 100″ | 2213 × 1245 | 2484 × 133 × 123 | 30 | 30 | 350 | 1611 |
| 16:9 | 110″ | 2435 × 1369 | 2705 × 133 × 123 | 30 | 30 | 380 | 1765 |
| 16:9 | 120″ | 2656 × 1494 | 2926 × 133 × 123 | 50 | 50 | 410 | 1920 |
All dimensions are in millimetres. Measurements are for general reference only. Please verify product dimensions with Carson Screens before structural or furniture modifications. Carson Screens is not responsible for faulty installations.
