Description
Designed for a Perfectly Flat Picture
Precision in Every Detail.

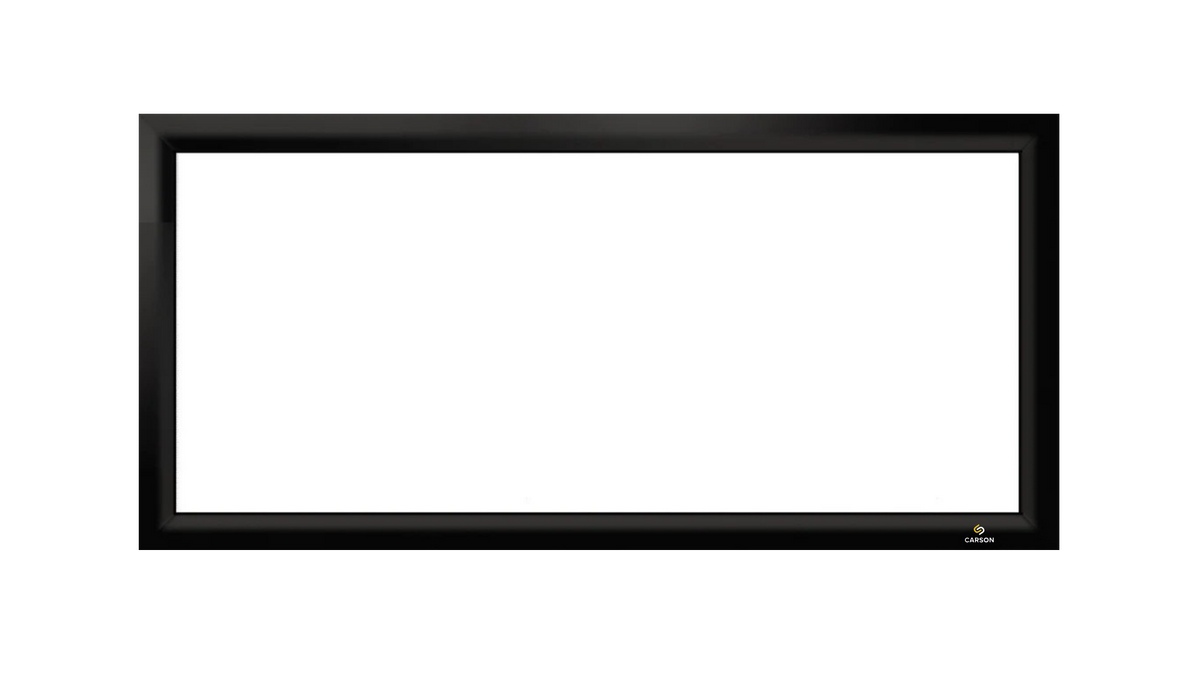

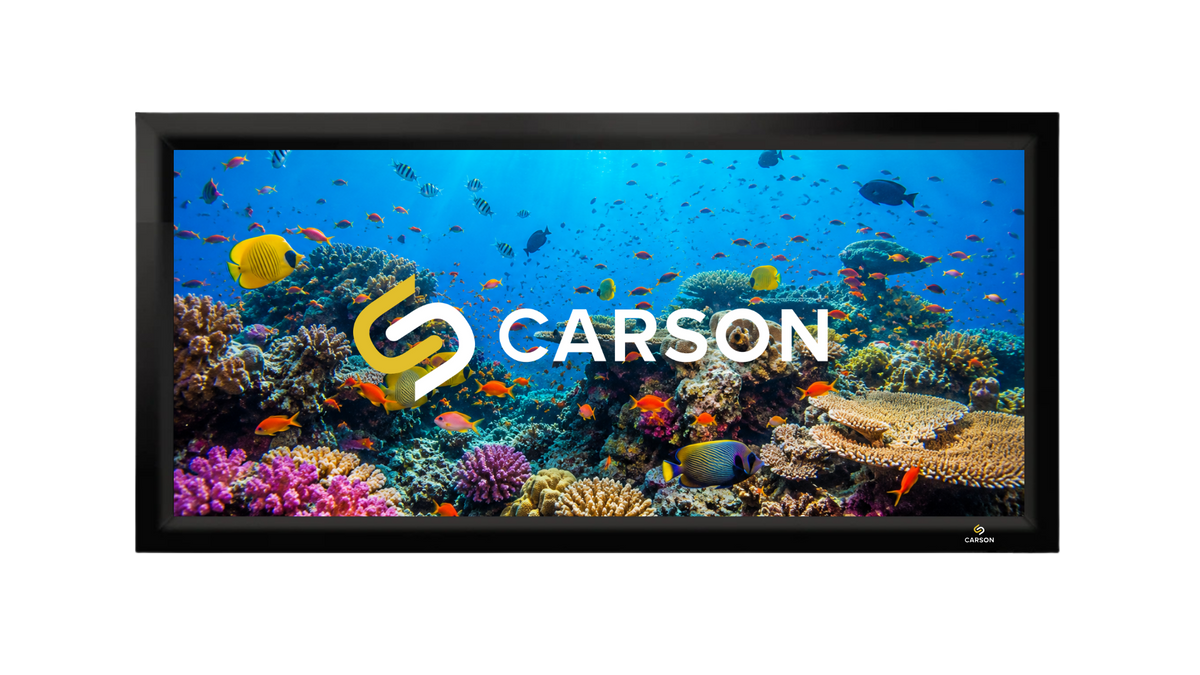

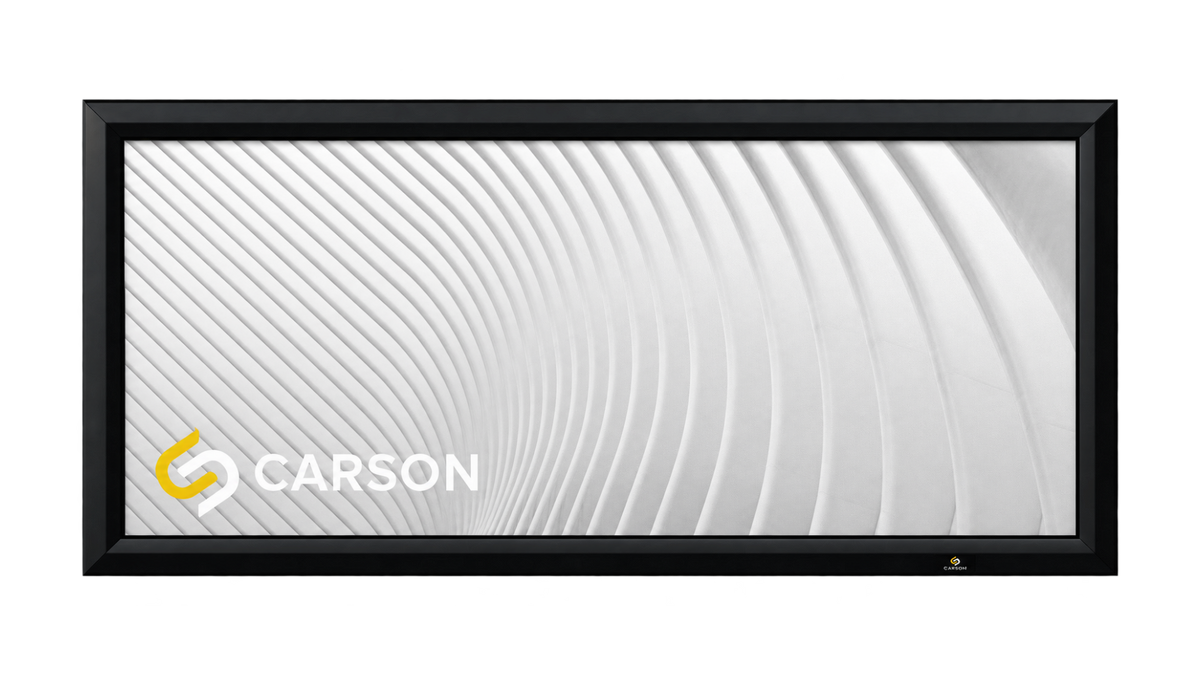

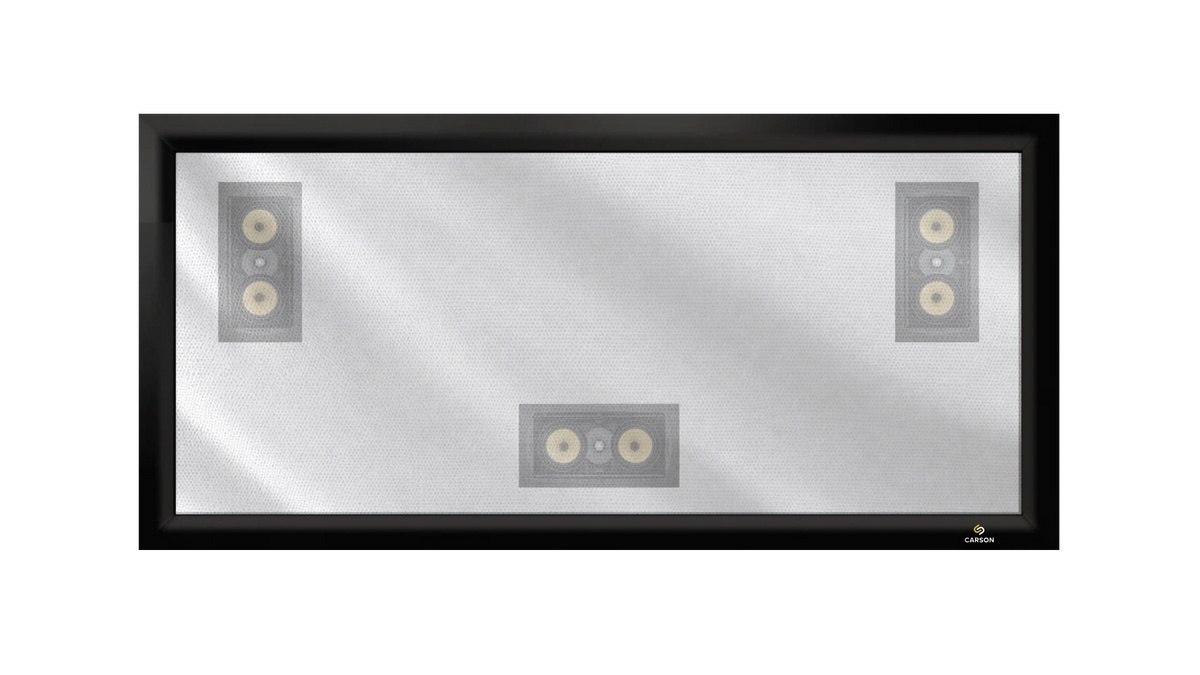

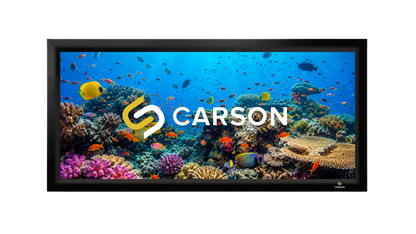

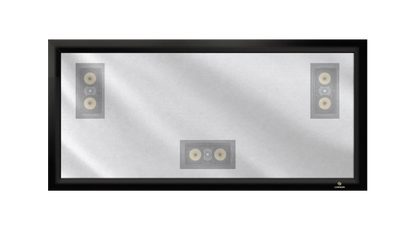

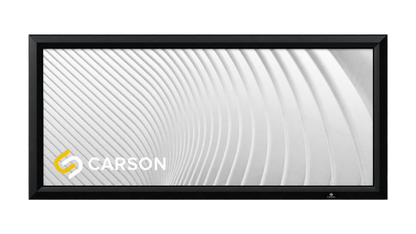

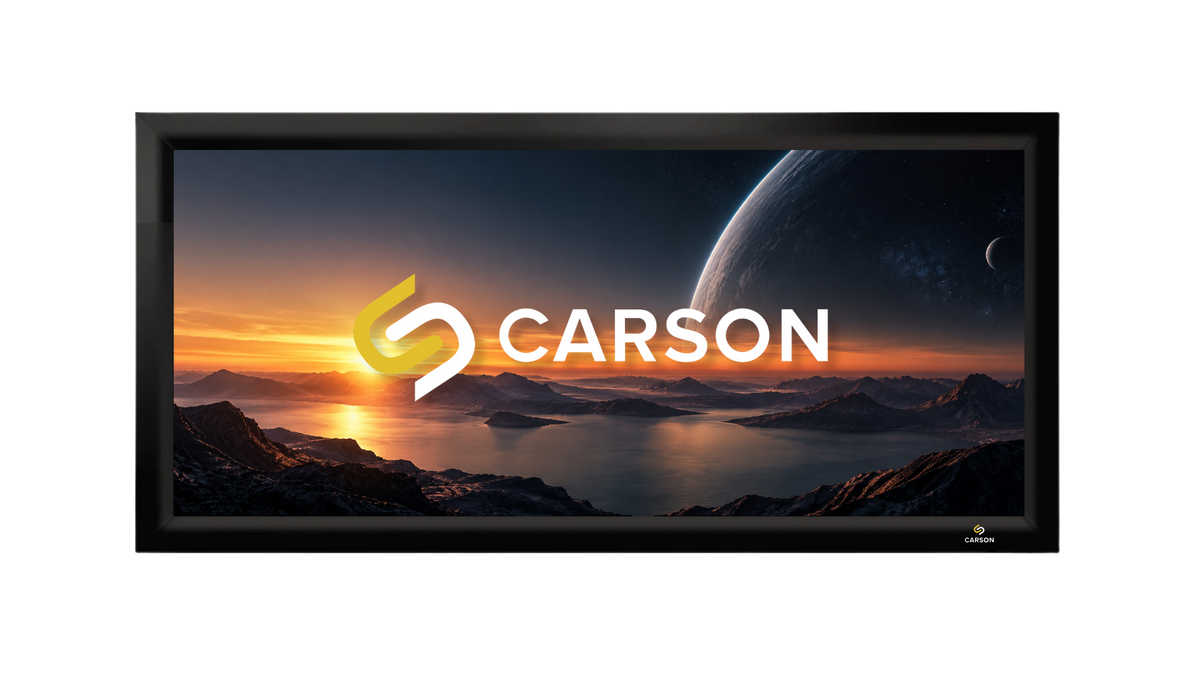

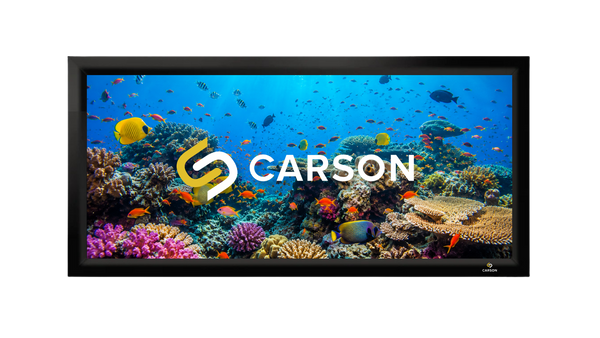

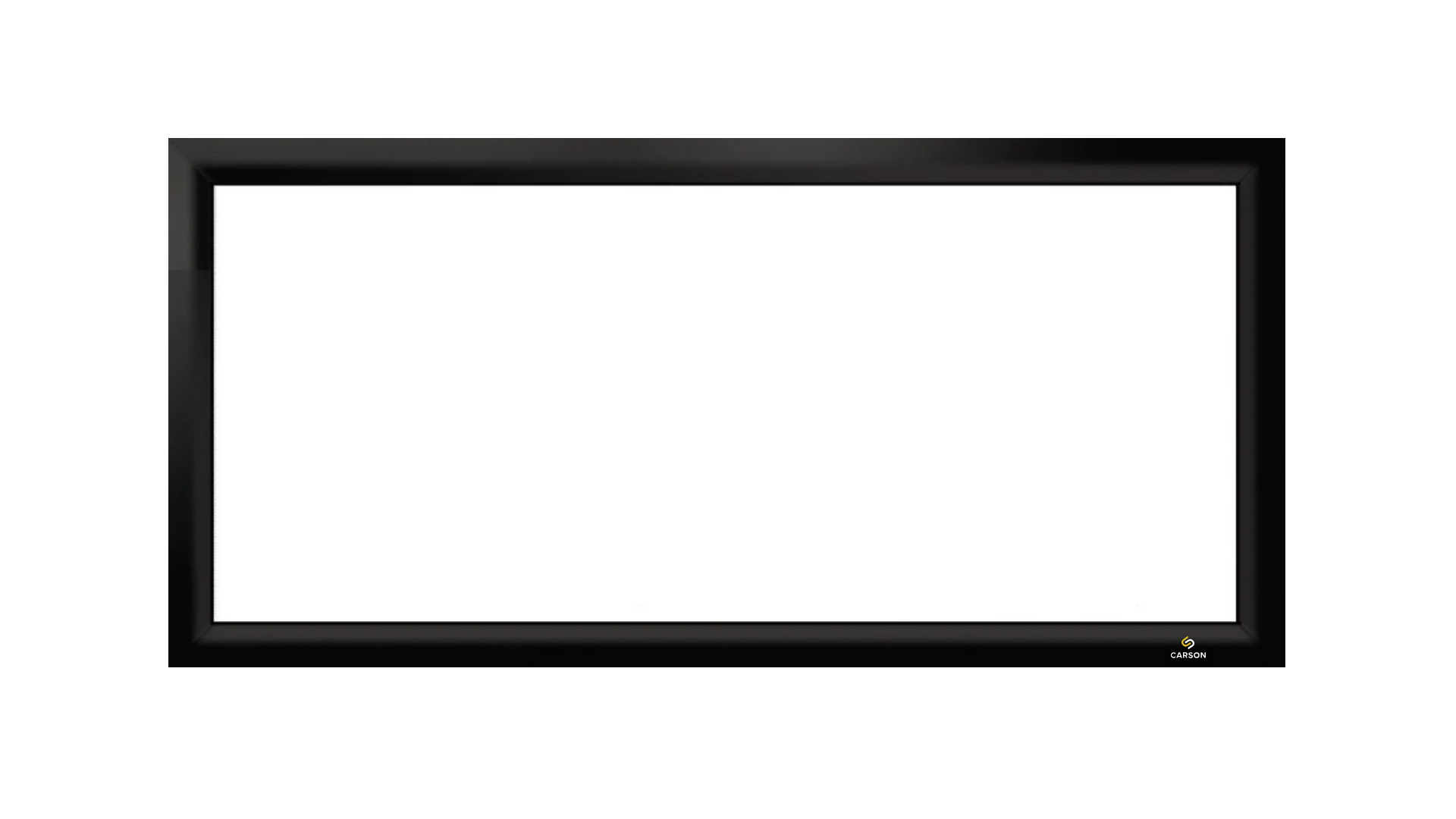

CARSON Scope has a sleek, modern appearance due to a 45-degree angle cut frame which provides a perfectly flat viewing surface for projection applications.
The Scope consists of a 60mm width frame. Due to the larger frame width, it controls tension more accurately while creating excellent presence. The material surface mounts to the back of an aluminium velour frame that provides the deepest black masking.
The Scope also comes standard with velour trim that aesthetically enhances the appearance of the installation, while absorbing light that surrounds the viewing area.
Material
Alpha Matt II HDR 8K
Carson’s Alpha Matt II HDR 8K material incorporates next generation Z-axis composite embossing technology to achieve ultra fine-grained 8K+ resolving ability. The material has 1.0 pure unity gain to support the latest infinite contrast ratio projectors and uniformly transmits vivid colour in a wide 160 degree arc for the entire audience to enjoy.
Made from a special synthetic polymer mix formed on top of a black bulk sublayer that prevents sunlight penetration from the rear, Alpha Matt II fully supports HDR10+, Dolby Vision and Rec. 2100, making it an excellent future proof investment for your current and future projectors.
Carson’s unique chemical engineering ensures this highly-elastic and foldable material is resistant to creasing, UV, moisture, dust, fire, discolouration and ageing so your screen will continue to perform day-in, day-out for decades to come.
Measurements
| Format | Screen Size | Viewing Area (mm) | Installation Area (mm) | Frame Width (mm) |
|---|---|---|---|---|
| 2.35:1 | 100" | 2337 × 995 | 2397 × 1115 | 60 |
| 2.35:1 | 110" | 2571 × 1094 | 2691 × 1214 | 60 |
| 2.35:1 | 120" | 2804 × 1193 | 2924 × 1313 | 60 |
| 2.35:1 | 130" | 3038 × 1293 | 3158 × 1413 | 60 |
| 2.35:1 | 140" | 3272 × 1392 | 3391 × 1511 | 60 |
| 2.35:1 | 150" | 3505 × 1491 | 3615 × 1611 | 60 |
| 2.35:1 | 160" | 3739 × 1591 | 3898 × 1750 | 80 |
| 2.35:1 | 170" | 3973 × 1690 | 4132 × 1849 | 80 |
| 2.35:1 | 180" | 4206 × 1790 | 4366 × 1950 | 80 |
| 2.35:1 | 190" | 4440 × 1889 | 4599 × 2048 | 80 |
| 2.35:1 | 200" | 4674 × 1989 | 4834 × 2149 | 80 |
The recorded measurements are for general reference only. Please contact Carson Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or ignored at the integrator’s discretion. Carson Screens will not be held responsible or be otherwise liable for faulty installations.
