Description
Big-Screen Cinema, Hidden Away.

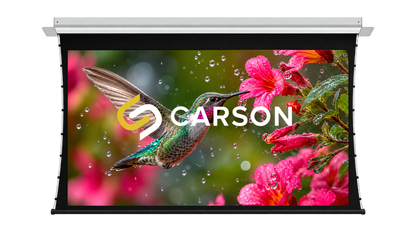

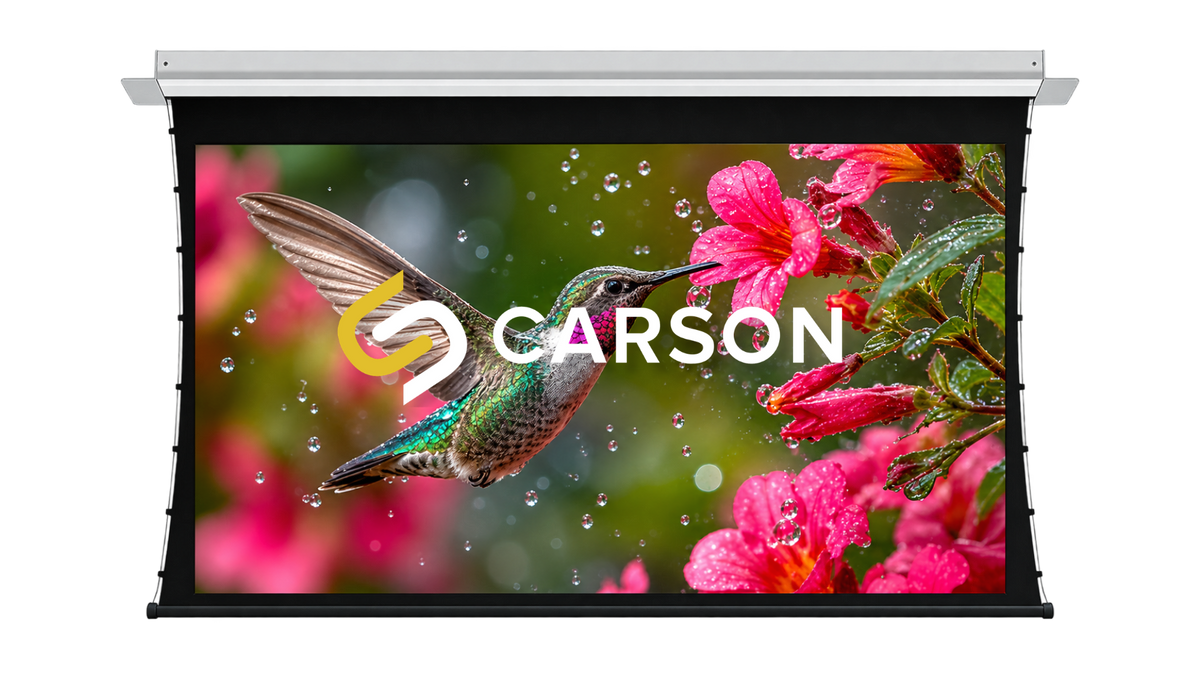

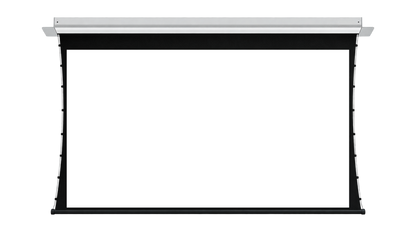

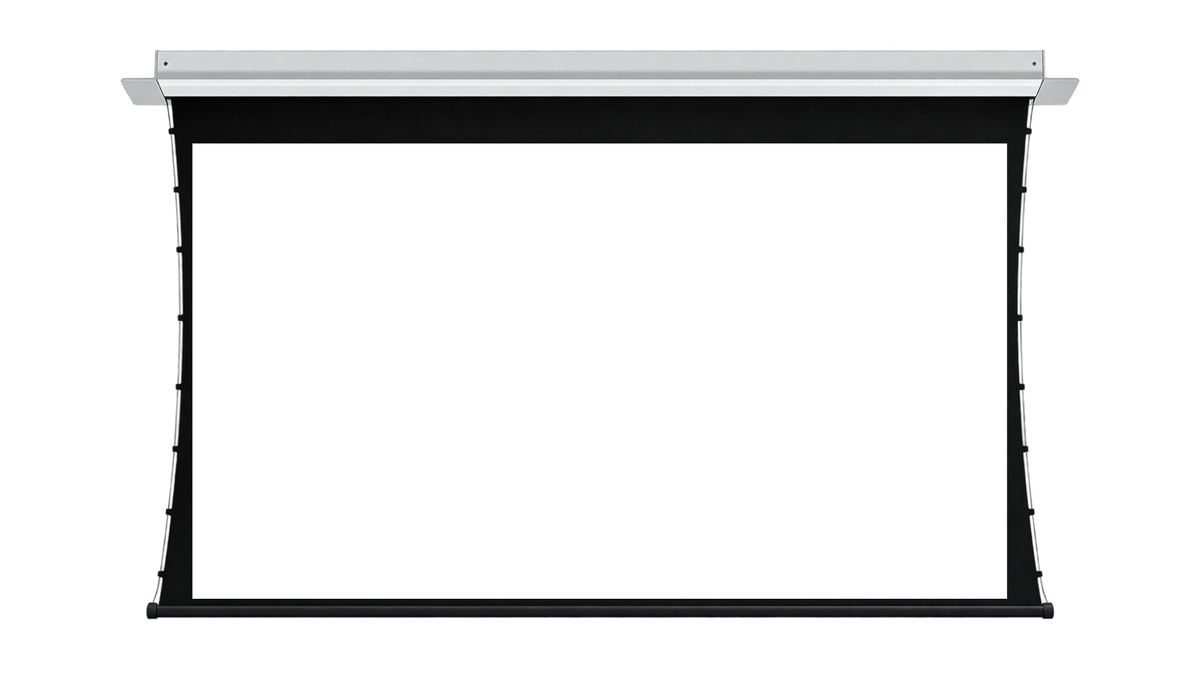

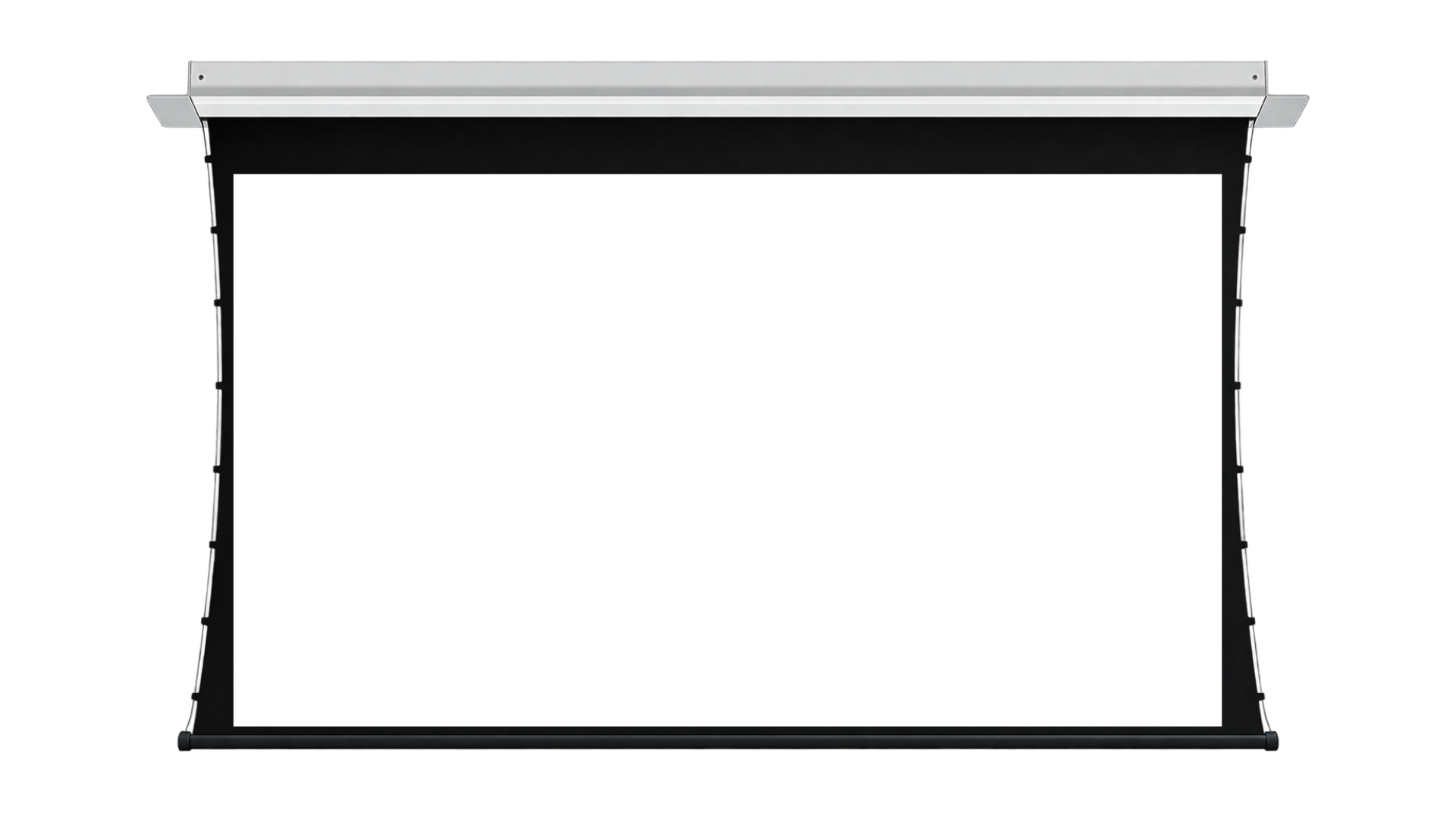

The Carson Preference Tab-Tension 16:9 4K/8K In-Ceiling Powered Home Theatre Screen combines a clean concealed installation with a tensioned projection surface designed for a consistently flat viewing experience.
There When You Want It. Hidden When You Don’t.
Designed to disappear into the ceiling when not in use, the Preference Tab-Tension keeps the projection system out of sight without permanently occupying wall space. At the touch of a remote, the screen lowers into position and retracts neatly away when viewing is finished.
Smooth Deployment. Ultra-Flat Viewing.
A large French-made Somfy roller works together with the tab-tension system to maintain a smooth, flat projection surface while providing convenient powered operation.
Measurements
Compare the listed 16:9 screen sizes and installation dimensions before planning your installation.
| Format | Screen Size | Viewing Area (W × H) | Installation Area (W × H) | Frame (Each Side) |
|---|---|---|---|---|
| 16:9 | 92″ | 2037 × 1145 mm | 2061 × 1169 mm | 12 mm |
| 16:9 | 100″ | 2213 × 1245 mm | 2237 × 1269 mm | 12 mm |
| 16:9 | 110″ | 2435 × 1369 mm | 2459 × 1393 mm | 12 mm |
| 16:9 | 120″ | 2656 × 1494 mm | 2680 × 1518 mm | 12 mm |
| 16:9 | 130″ | 2878 × 1619 mm | 2902 × 1643 mm | 12 mm |
| 16:9 | 140″ | 3099 × 1743 mm | 3123 × 1767 mm | 12 mm |
| 16:9 | 150″ | 3321 × 1868 mm | 3345 × 1892 mm | 12 mm |
Measurements are reproduced from the supplied source and should be confirmed with Carson Screens before installation. The source labels the 12 mm measurement as “Frame (Each Side)”; verify that this label applies to this in-ceiling product.
