Description
Carson Preference Tab-Tension 2.35:1 4K/8K In-ceiling Powered Home Theatre Screen offers the ultimate flat screen in motorized In-ceiling projection screen technology. With the large French-made Somfty roller, the Preference Tab-Tension In-Ceiling screen creates an ultra-flat viewing surface. Keep all visual components out of sight, the Preference Tab-Tension completely disappears into your ceiling space after installation and appear with one touch of your remote.
Matte White Material
PVC coated based on fibre-glass, white front and black back, maximum W5000mm, the surface is very flat and distributes light over a wide viewing area to ensure a wide viewing angle. It’s one of the most popular used screen surfaces and a good choice for applications where the ambient light is controllable. Colours remain bright and life-like, with no shifts in hue. Flame retardant and mildew resistant.
- Viewing angle: 160°
- Gain: 1.0
Acoustic Material (Optional)
PVC coated based on fibre-glass, pure white, maximum W3000mm, a designed additional black acoustic material is needed when using this fabric. This surface is designed to allow the speakers to be installed behind the screen, and achieve a more realistic soundstage.
- Viewing angle: 160°
- On-Axis Gain: 0.95
- Video Transparency (incl BB layer): 0.5%
- Acoustic Transparency: -2.5db (10 kHz - 20 kHz)
- Acoustic Transparency (incl BB layer): -2.5dB (10 kHz - 20 kHz)

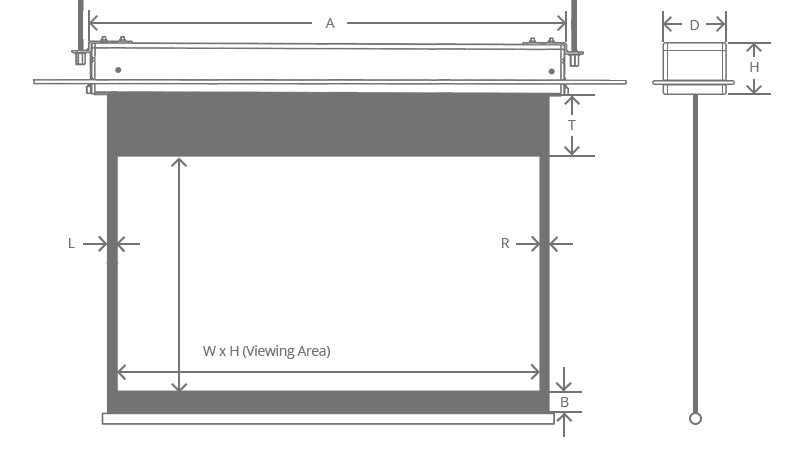

| Format | Spec | Viewing area(mm) | Top border(mm) | L/R border(mm) | Bottom border(mm) | Casing size (mm) | Cut out size (mm) |
|---|---|---|---|---|---|---|---|
| WxH | T | L/R | B | AxDxH | AxD | ||
|
2.35:1
|
92" | 2150x915 | 850 | 50 | 80 | 2589x160x110 | 2579x140 |
| 100" | 2337x995 | 570 | 50 | 80 | 2776x160x110 | 2756x140 | |
| 110" | 2571x1094 | 470 | 50 | 80 | 3010x160x110 | 2990x140 | |
| 120" | 2805x1193 | 630 | 50 | 80 | 3244x160x110 | 3224x140 | |
| 130" | 3038x1293 | 580 | 50 | 80 | 3477x160x110 | 3457x140 | |
| 140" | 3272x1392 | 480 | 50 | 80 | 3711x160x110 | 3691x140 | |
| 150" | 3506x1492 | 380 | 50 | 80 | 3960x160x110 | 3940x140 |
Note: The recorded measurements are for general reference only. Please contact Carson Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or ignored at the integrator’s discretion. Carson Screens will not be held responsible or be otherwise liable for faulty installations.
